Suzuki KingQuad 400AS Camo 20092009 Suzuki KingQuad 400AS Camo specifications, pictures, reviews and rating |

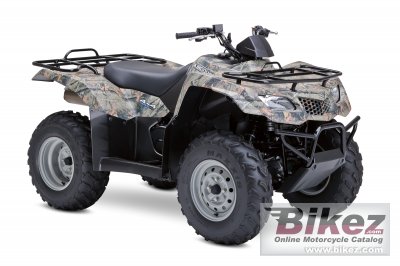

 2009 Suzuki KingQuad 400AS Camo. Picture credits - Suzuki. Submit more pictures.
|
|
| General information | |
|---|---|
| Motorcycle name | Suzuki KingQuad 400AS Camo |
| Year model | 2009 |
| Type | ATV |
| Price as new | US$ 5799. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 376.0 ccm (22.94 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 82.0 x 71.2 mm (3.2 x 2.8 inches) |
| Fuel system | Carburettor. Keihin CVK32 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent Double A-Arm |
| Rear suspension | Swingarm type, coil spring, oil damped |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 284.9 kg (628.0 pounds) |
| Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall height | 1220 mm (48.0 inches) |
| Overall length | 2060 mm (81.1 inches) |
| Overall width | 1145 mm (45.1 inches) |
| Ground clearance | 250 mm (9.8 inches) |
| Wheelbase | 1270 mm (50.0 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Camo |
| Starter | Electric & kick |
| Comments | 2WD or 4WD operation. |
