General information |
|
Motorcycle name
|

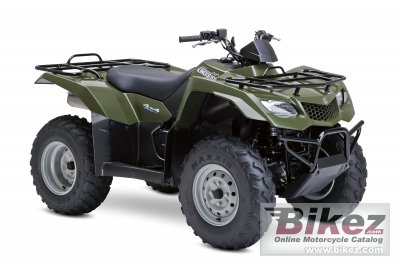

Suzuki KingQuad 400AS |
|
Year
|
2009 |
|
Category
|
ATV |
| Price as new | US$ 5499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
376.0 ccm (22.94 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
82.0 x 71.2 mm (3.2 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin CVK32 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Independent, double wishbone, coil spring, oil damped |
|
Rear suspension
|
Swingarm type, coil spring, oil damped |
|
Front tire
|
25/8-ATATAT12 |
|
Rear tire
|
25/10-ATATAT12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
285.0 kg (628.3 pounds) |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1220 mm (48.0 inches) |
|
Overall length
|
2060 mm (81.1 inches) |
|
Overall width
|
1145 mm (45.1 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Red, Green |
|
Comments
|
2WD or 4WD operation. Also available in a camo and anniversary edition. |
