Suzuki Katana R50 20062006 Suzuki Katana R50 specifications, pictures, reviews and rating |

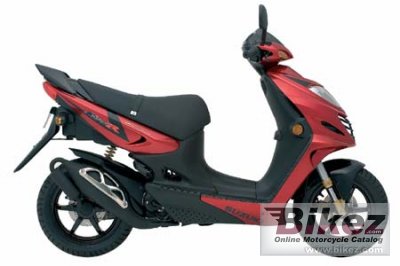

 2006 Suzuki Katana R50. frankydodo. Submit more pictures.
|
| Suzuki's profilation of this bike |
| The compact commuter is powered by a new, liquid-cooled, direct-injection, two-stroke engine, and it is bestowed with aggressive looks thanks to a new, aerodynamic GSX-R-style fairing. It has light and sporty six-spoke alloy wheels, hydraulic front and rear disc-brakes and new Showa inverted forks. |
| General moped information | |
|---|---|
| Model | Suzuki Katana R50 |
| Year of manufacture | 2006 |
| Type | Scooter |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 3.9 HP (2.8 kW)) @ 6500 RPM |
| Torque | 3.4 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 5000 RPM |
| Compression | 8.1:1 |
| Bore x stroke | 41.0 x 37.4 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Keihin PWS14 |
| Ignition | CDI |
| Lubrication system | Posi forced lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Diameter | 120 mm (4.7 inches) |
| Physical measures and capacities | |
| Dry weight | 89.0 kg (196.2 pounds) |
| Power/weight ratio | 0.0436 HP/kg |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 1865 mm (73.4 inches) |
| Overall width | 650 mm (25.6 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1260 mm (49.6 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
