General information |
Model
|

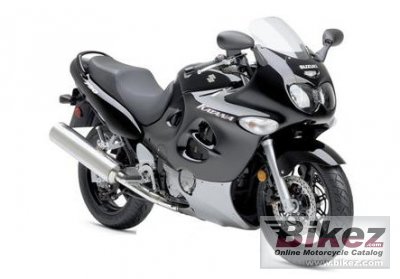

Suzuki Katana 750 |
Model year
|
2006 |
Category
|
Sport |
Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
750.0 ccm (45.77 cubic inches) |
Engine type
|
In-line four, four-stroke |
Compression
|
10.7:1 |
Bore x stroke
|
70.0 x 48.7 mm (2.8 x 1.9 inches) |
Fuel system
|
Carburettor. Mikuni |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital/Transistorized |
Lubrication system
|
Wet sump |
Cooling system
|
Oil & air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet multiple plate coil springs |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic, oil damped, 4-way adjustable rebound damping. |
Rear suspension
|
Link-type suspension, 4-way adjustable rebound damping, fully adjustable compression damping and preload. |
Front tire
|
120/70-ZR17 |
Rear tire
|
150/70-ZR17 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
211.0 kg (465.2 pounds) |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Overall height
|
1190 mm (46.9 inches) |
Overall length
|
2140 mm (84.3 inches) |
Overall width
|
760 mm (29.9 inches) |
Ground clearance
|
120 mm (4.7 inches) |
Wheelbase
|
1465 mm (57.7 inches) |
Fuel capacity
|
20.00 litres (5.28 US gallons) |
Other specifications |
Color options
|
Black/Silver, Silver/Red |
Update specs | Report missing specs or required updates. |
