General moped information |
Model name
|

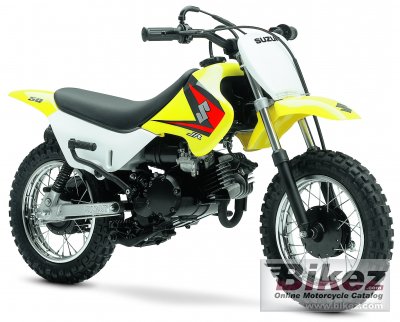

Suzuki JR 50 |
Model year
|
2005 |
Category
|
Minibike, cross |
Price as new | US$ 1099. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.3 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
50.0 ccm (3.05 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
5.6:1 |
Bore x stroke
|
41.0 x 37.8 mm (1.6 x 1.5 inches) |
Fuel system
|
Carburettor |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic, 2-way height adjustable |
Rear suspension
|
Twin shock, 2-way height adjustable |
Front tire
|
70/90-17 |
Rear tire
|
90/90-14 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
38.0 kg (83.8 pounds) |
Seat height
|
480 mm (18.9 inches) If adjustable, lowest setting. |
Overall height
|
730 mm (28.7 inches) |
Overall length
|
1245 mm (49.0 inches) |
Overall width
|
595 mm (23.4 inches) |
Ground clearance
|
115 mm (4.5 inches) |
Wheelbase
|
860 mm (33.9 inches) |
Fuel capacity
|
2.00 litres (0.53 US gallons) |
Other specifications |
Color options
|
Yellow |
