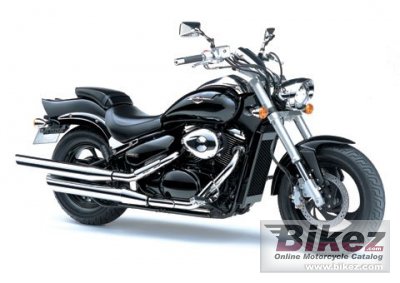

Suzuki Intruder M800 20092009 Suzuki Intruder M800 specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The M800 is one mid-sized cruiser that punches way above its weight. It also proves that cruisers don’t have to offer retro performance with their classic good looks. |
| General information | |
|---|---|
| Model name | Suzuki Intruder M800 |
| Model year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 805.0 ccm (49.12 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 52.3 HP (38.2 kW)) @ 600 RPM |
| Torque | 66.4 Nm (6.8 kgf-m or 49.0 ft.lbs) @ 4000 RPM |
| Compression | 9.4:1 |
| Bore x stroke | 83.0 x 74.4 mm (3.3 x 2.9 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic ignition (Transistorised) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multi-plate |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.3° |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Rear suspension | Link type, coil spring, oil damped |
| Front tire | 130/90-M16 |
| Rear tire | 170/80-M15 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 247.0 kg (544.5 pounds) |
| Weight incl. oil, gas, etc | 269.0 kg (593.0 pounds) |
| Power/weight ratio | 0.2117 HP/kg |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2370 mm (93.3 inches) |
| Overall width | 920 mm (36.2 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1655 mm (65.2 inches) |
| Fuel capacity | 15.50 litres (4.10 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
