| General information |
|---|

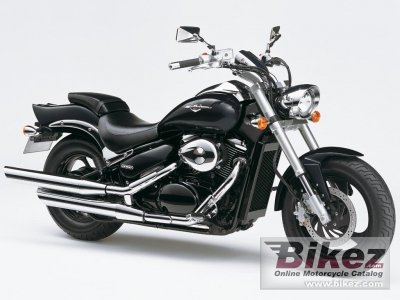

| Model | Suzuki Intruder M800 |
| Year | 2006 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 805.0 ccm (49.12 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 55.0 HP (40.1 kW)) @ 6000 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4000 RPM |
| Compression | 9.4:1 |
| Bore x stroke | 83.0 x 74.4 mm (3.3 x 2.9 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic ignition (transistorized) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi plate |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle) | 32.3° |
| Front suspension | Inverted telescopic, coil spring |
| Rear suspension | Link type, oil damped, coil spring, spring pre-load 7-way adjustable |
| Front brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 245.0 kg (540.1 pounds) |
| Power/weight ratio | 0.2245 HP/kg |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Alternate seat height | 805 mm (31.7 inches) If adjustable, highest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2370 mm (93.3 inches) |
| Overall width | 860 mm (33.9 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1655 mm (65.2 inches) |
| Fuel capacity | 15.50 litres (4.10 US gallons) |
| Other specifications |
|---|
