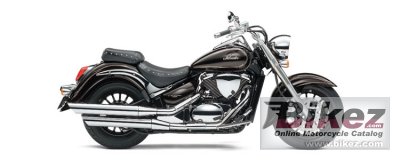

2012 Suzuki Intruder Classic 400 Cast Wheel. Image credits - Suzuki.
Suzuki's profilation of this bike
Cast wheels were painted black brace the feet of a classic cruiser design.
General information
Model
Suzuki Intruder Classic 400 Cast Wheel
Year of manufacture
2012
Type
Custom / cruiser
Rating
Do you know this bike?Click here to rate it . We miss 2 votes to show the rating.
Engine and transmission
Engine size
399.0 ccm (24.35 cubic inches)
Type of engine
V2, four-stroke
Output
33.0 HP (24.1 kW )) @ 8000 RPM
Torque
33.0 Nm (3.4 kgf-m or 24.3 ft.lbs) @ 6000 RPM
Bore x stroke
65.0 x 60.2 mm (2.6 x 2.4 inches)
Valves per cylinder
4
Fuel system
Injection
Fuel control
Single Overhead Cams (SOHC)
Ignition
Full transistor type
Lubrication system
Wet sump
Cooling system
Oil & air
Gearbox
5-speed
Transmission type
Chain (final drive)
Clutch
Wet multi-plate coil spring
Driveline
Constant mesh
Fuel consumption
3.03 litres/100 km (33.0 km/l or 77.63 mpg)
Greenhouse gases
70.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type
Double cradle
Rake (fork angle)
33.2°
Trail
141 mm (5.6 inches)
Front tire
130/90-16
Rear tire
170/80-15
Front brakes
Single disc. Hydraulic
Rear brakes
Expanding brake (drum brake)
Wheels
Black cast wheels
Seat
Tandem seat
Physical measures and capacities
Dry weight
276.0 kg (608.5 pounds)
Weight incl. oil, gas, etc
295.0 kg (650.4 pounds)
Power/weight ratio
0.1196 HP/kg
Seat height
700 mm (27.6 inches) If adjustable, lowest setting.
Overall length
2080 mm (81.9 inches)
Ground clearance
140 mm (5.5 inches)
Wheelbase
1655 mm (65.2 inches)
Fuel capacity
15.00 litres (3.96 US gallons)
Oil capacity
3.70 litres (3.91 US quarts)
Other specifications
Color options
Black, white, purple
Starter
Electric
Instruments
Digital/analogue
Comments
Sold in Japan.
