General information |
|
Model name
|

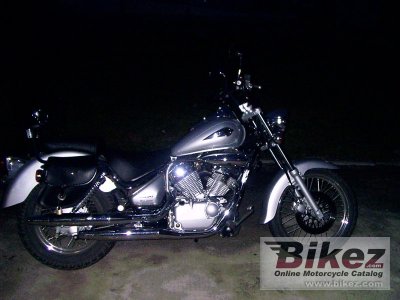

Suzuki Intruder 125 LC |
|
Year model
|
2006 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
13.1 HP (9.6 kW)) @ 10500 RPM |
|
Torque
|
9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 8000 RPM |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
44.0 x 40.9 mm (1.7 x 1.6 inches) |
|
Fuel system
|
Carburettor. Mikuni BDS26 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital electronic |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
31.7° |
|
Front suspension
|
Conventional, oil damped, coil-sprung telescopic |
|
Rear suspension
|
Twin shock absorber, adjustable spring preload |
|
Front brakes
|
Single disc |
|
Diameter
|
275 mm (10.8 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
241.0 kg (531.3 pounds) |
|
Power/weight ratio
|
0.0545 HP/kg |
|
Seat height
|
685 mm (27.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
805 mm (31.7 inches) If adjustable, highest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
2240 mm (88.2 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
