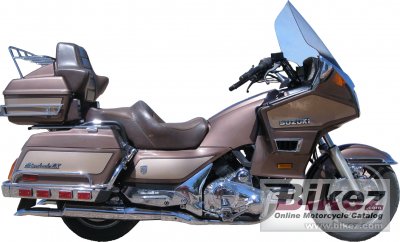

Suzuki GV1400 Cavalcade 19861986 Suzuki GV1400 Cavalcade specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Suzuki GV1400 Cavalcade |
| Model year | 1986 |
| Category | Touring |
| Price as new | US$ 8000. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.0 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1360.0 ccm (82.99 cubic inches) |
| Engine type | V4, four-stroke |
| Power output | 112.0 HP (81.8 kW)) @ 7000 RPM |
| Torque | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 5500 RPM |
| Top speed | 193.1 km/h (120.0 mph) |
| 1/4 mile (0.4 km) | 16.00 seconds |
| 60-140 km/h (37-87 mph), highest gear | 23.00 seconds |
| Max RPM | 9000 |
| Compression | 9.5:1 |
| Bore x stroke | 81.0 x 66.0 mm (3.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Transistorized |
| Lubrication system | Wet Sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi-plate |
| Fuel consumption | 6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
| Greenhouse gases | 143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Double Chrome Plated pipes |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 29.0° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | Telescopic, coil spring, oil damped, non adjustable |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Auto Level Air Ride, oil damped |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | Dunlop Elite-3 |
| Rear tire | Dunlop Elite-3 |
| Front brakes | Double disc. Dual 2-piston Calipers |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Single 2-piston Caliper |
| Diameter | 310 mm (12.2 inches) |
| Physical measures and capacities | |
| Dry weight | 342.0 kg (754.0 pounds) |
| Weight incl. oil, gas, etc | 373.3 kg (823.0 pounds) |
| Power/weight ratio | 0.3275 HP/kg |
| Front percentage of weight | 40.0 |
| Rear percentage of weight | 60.0 |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1549 mm (61.0 inches) |
| Overall length | 2530 mm (99.6 inches) |
| Overall width | 935 mm (36.8 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1669 mm (65.7 inches) |
| Fuel capacity | 23.09 litres (6.10 US gallons) |
| Reserve fuel capacity | 3.79 litres (1.00 US gallons) |
| Oil capacity | 3.10 litres (3.28 US quarts) |
| Other specifications | |
| Starter | Electric |
| Electrical | 500 Watt alternator w/built in accessory terminal |
| Comments | Some of the spec numbers estimated as they are unavailable; including price when new |
