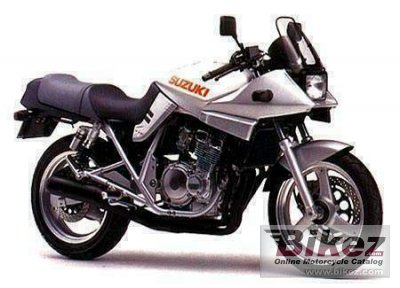

Suzuki GSX 250 SSN Katana 19921992 Suzuki GSX 250 SSN Katana specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Suzuki GSX 250 SSN Katana |
| Year of manufacture | 1992 |
| Type | Sport |
| Rating | 3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 248.0 ccm (15.13 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 38.9 HP (28.4 kW)) @ 13500 RPM |
| Torque | 26.4 Nm (2.7 kgf-m or 19.5 ft.lbs) @ 10000 RPM |
| Top speed | 174.0 km/h (108.1 mph) |
| Maximum RPM | 15500 |
| Compression | 12.5:1 |
| Bore x stroke | 49.0 x 33.0 mm (1.9 x 1.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Four 29mm Mikuni |
| Ignition | Digita; |
| Lubrication system | Wet Sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet Plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular Steel |
| Rake (fork angle) | 25.6° |
| Trail | 99 mm (3.9 inches) |
| Front suspension | Hydraulic Telefork |
| Rear suspension | 2 Kayabo shocks, piggyback damper reservoirs, variable preload |
| Front tire | 110/70-17 |
| Rear tire | 140/70-17 |
| Front brakes | Single disc. Floating Disc, 4 Pot Caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Fixed Disc, 2 Pot Caliper |
| Physical measures and capacities | |
| Dry weight | 160.0 kg (352.7 pounds) |
| Power/weight ratio | 0.2430 HP/kg |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1160 mm (45.7 inches) |
| Overall length | 2060 mm (81.1 inches) |
| Overall width | 685 mm (27.0 inches) |
| Ground clearance | 165 mm (6.5 inches) |
| Wheelbase | 1435 mm (56.5 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | Silver Maroon/Silver |
| Starter | Electric |
