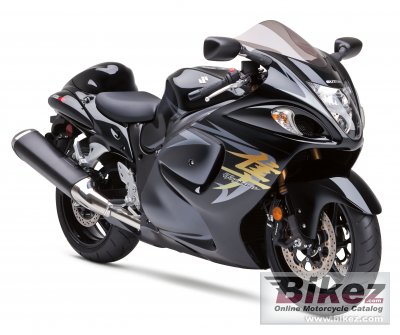

Suzuki GSX1300R Hayabusa 20092009 Suzuki GSX1300R Hayabusa specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| New ventilation holes at the cylinder skirt for reduced pumping losses and increased overall performance. |
| General information | |
|---|---|
| Model name | Suzuki GSX1300R Hayabusa |
| Year of manufacture | 2009 |
| Type | Sport |
| Price as new | US$ 12499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1340.0 ccm (81.77 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 196.0 HP (143.1 kW)) @ 9800 RPM |
| Torque | 154.0 Nm (15.7 kgf-m or 113.6 ft.lbs) @ 7200 RPM |
| Top speed | 297.0 km/h (184.5 mph) |
| Compression | 12.5:1 |
| Bore x stroke | 81.0 x 65.0 mm (3.2 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Suzuki SDTV fuel injection system with dual injectors per cylinder and ram air intake with large volume airbox |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (Transistorized) |
| Lubrication system | Wet Sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | 4-into-2-into-1 exhaust system with a large capacity catalyzer, oxygen sensors and an oval cross section canister with dual openings that meets Euro 3 and Tier 2 regulation |
| Chassis, suspension, brakes and wheels | |
| Frame type | Twin-spar cast aluminum alloy |
| Rake (fork angle) | 24.2° |
| Trail | 98 mm (3.9 inches) |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Rear suspension | Linky type, coil spring, oil damped |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. 4-piston caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. 1-piston calipers |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 260.0 kg (573.2 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1165 mm (45.9 inches) |
| Overall length | 2190 mm (86.2 inches) |
| Overall width | 735 mm (28.9 inches) |
| Ground clearance | 120 mm (4.7 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Other specifications | |
| Color options | Black/Gray, Gray/Silver, White/Silver |
| Starter | Electric |
| Comments | Optional ABS brakes. |
