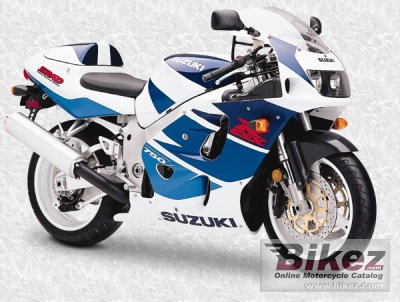

1998 Suzuki GSX-R 750

Suzuki GSX-R 750 1998


1998 Suzuki GSX-R 750 specifications, pictures, reviews and rating

General information
Model name Suzuki GSX-R 750
Year of manufacture 1998
Type Sport
Rating 3.7  Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike.
Engine and transmission
Engine size 749.0 ccm (45.70 cubic inches)
Type of engine In-line four, four-stroke
Output 135.0 HP (98.5 kW))
Torque 82.3 Nm (8.4 kgf-m or 60.7 ft.lbs)
Top speed 265.0 km/h (164.7 mph)
Compression 12.0:1
Bore x stroke 72.0 x 46.0 mm (2.8 x 1.8 inches)
Valves per cylinder 4
Fuel system Injection. 46 mm throttle bodies
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Ignition Computer controlled electronic ignition
Lubrication system Wet sump
Cooling system Liquid
Gearbox 6-speed
Transmission type Chain (final drive)
Clutch Cable operated, wet multiple, coil spring
Driveline O-ring sealed
Exhaust system 4-into-2-into-1 stainless-steel
Chassis, suspension, brakes and wheels
Frame type Conventional twin-beam aluminium
Rake (fork angle) 24.0°
Trail 97 mm (3.8 inches)
Front suspension 43mm Showa inverted, inner cartridge fully adjustable rebound compression damping, 15 mm range spring preload
Rear suspension Swingarm, progressive linkage, fully adjustable rebound compression damping, 10mm range spring preload
Rear wheel travel 133 mm (5.2 inches)
Front tire 120/70-ZR17
Rear tire 190/50-ZR17
Front brakes Double disc
Diameter 320 mm (12.6 inches)
Rear brakes Single disc. Two-piston calipers.
Diameter 220 mm (8.7 inches)
Wheels Alloy
Physical measures and capacities
Dry weight 179.0 kg (394.6 pounds)
Weight incl. oil, gas, etc 194.0 kg (427.7 pounds)
Power/weight ratio 0.7542 HP/kg
Seat height 830 mm (32.7 inches) If adjustable, lowest setting.
Overall length 2055 mm (80.9 inches)
Ground clearance 130 mm (5.1 inches)
Wheelbase 1395 mm (54.9 inches)
Fuel capacity 18.00 litres (4.76 US gallons)
Other specifications
Color options White/Blue, Red/White/Black
Starter Electric
Update specsReport missing specs or required updates.
Maintenance and service specs *
Spark plugs NGK, CR9E
Chain size 525
Chain links 108
*) Always verify maintenance and service data with the bike owner's manual.
