General information |
|
Model
|

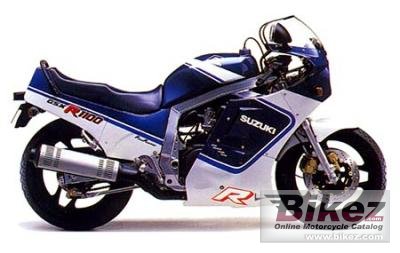

Suzuki GSX-R 1100 |
|
Year
|
1987 |
|
Category
|
Sport |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1052.0 ccm (64.19 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
130.0 HP (94.9 kW)) @ 9500 RPM |
|
Torque
|
103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) |
|
Top speed
|
249.0 km/h (154.7 mph) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
76.0 x 58.0 mm (3.0 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 4 x 34 mm Mikuni Flatslide CV |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Fuel consumption
|
970.00 litres/100 km (0.1 km/l or 0.24 mpg) |
|
Greenhouse gases
|
22,504.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Lightweight aluminum alloy castings. Rectangular-section extrusions in a twin-downtube arrangement |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
117 mm (4.6 inches) |
|
Front suspension
|
41mm Telescopic fork, 4-way preload, 3-way anti-dive adjustable |
|
Rear suspension
|
Full-floater monoshock, 4-way rebound damping adjustable |
|
Front tire
|
110/80-18 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
197.0 kg (434.3 pounds) |
|
Weight incl. oil, gas, etc
|
225.0 kg (496.0 pounds) |
|
Power/weight ratio
|
0.6599 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
719 mm (28.3 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Blue/White, Red/White |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
ProFilter PF-138B |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YB14L-A2 |
|
Spark plugs
|
NGK JR9B, NGK DR9EIX |
|
Idle speed
|
1100 +/- 100 RPM |
|
Chain size
|
532 |
|
Chain links
|
114 |
|
Sprockets
|
14/46 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
