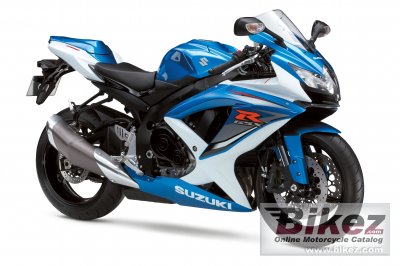

Suzuki GSX-R750 20092009 Suzuki GSX-R750 specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Electronic fuel injection system features Suzuki Dual Throttle Valve (SDTV) system - with dual fuel injectors per cylinder and new compact 8 hole, fine spray injectors for improved fuel atomization. |
| General information | |
|---|---|
| Model | Suzuki GSX-R750 |
| Year model | 2009 |
| Type | Sport |
| Price as new | US$ 10999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 750.0 ccm (45.77 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Torque | 86.3 Nm (8.8 kgf-m or 63.7 ft.lbs) @ 11200 RPM |
| Top speed | 271.0 km/h (168.4 mph) |
| 0-100 km/h (0-62 mph) | 3.20 seconds |
| Compression | 12.5:1 |
| Bore x stroke | 70.0 x 48.7 mm (2.8 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (Transistorized) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple discs |
| Driveline | Chain, RK525ROZ5Y |
| Fuel consumption | 5.50 litres/100 km (18.2 km/l or 42.77 mpg) |
| Greenhouse gases | 127.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Ultra-lightweight frame built entirely of aluminum alloy castings. |
| Rake (fork angle) | 23.8° |
| Trail | 97 mm (3.8 inches) |
| Front suspension | Inverted, telescopic, coil spring, oil damped |
| Rear suspension | Link type, coil spring, oil damped |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 163.0 kg (359.4 pounds) |
| Weight incl. oil, gas, etc | 198.0 kg (436.5 pounds) |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2040 mm (80.3 inches) |
| Overall width | 715 mm (28.1 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1405 mm (55.3 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Oil capacity | 2.50 litres (2.64 US quarts) |
| Other specifications | |
| Color options | Black/Matte Black, Blue/White, White/Silver |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | K & N KN-138 |
| Brake fluid | DOT 4 |
| Coolant | 3.00 litres (0.79 US gallons) |
| Battery | YT12A-BS |
| Spark plugs | NGK, CR9E |
| Idle speed | 1200 +/- 100 RPM |
| Chain links | 116 |
| Sprockets | 17/45 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 42 PSI (2.9 Bar or 290 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
