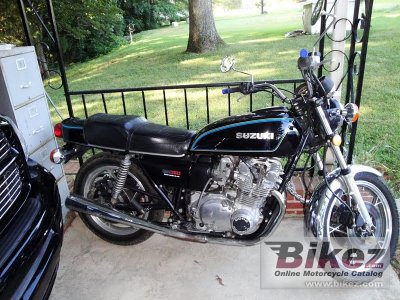

Suzuki GS 750 E 19781978 Suzuki GS 750 E specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Suzuki GS 750 E |
| Year | 1978 |
| Category | Sport touring |
| Rating | 4.1 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 748.0 ccm (45.64 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power | 63.0 HP (46.0 kW)) @ 8800 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) |
| Top speed | 198.0 km/h (123.0 mph) |
| Compression | 8.7:1 |
| Bore x stroke | 65.0 x 56.4 mm (2.6 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Battery, coil |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate |
| Driveline | Chain, |
| Fuel consumption | 6.40 litres/100 km (15.6 km/l or 36.75 mpg) |
| Greenhouse gases | 148.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Trail | 107 mm (4.2 inches) |
| Front suspension | 35mm Kayaba with anti dive adjustable air pressure. |
| Rear suspension | Dual shocks adjustable preload and spring rebound damping. |
| Front tire | 3.25-19 |
| Rear tire | 4.00-18 |
| Front brakes | Single disc. 0 |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 223.0 kg (491.6 pounds) |
| Weight incl. oil, gas, etc | 253.0 kg (557.8 pounds) |
| Power/weight ratio | 0.2825 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length | 2225 mm (87.6 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Reserve fuel capacity | 2.00 litres (0.53 US gallons) |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Other specifications | |
| Color options | Black, red, blue |
| Starter | Electric & kick |
| Electrical | Battery battery. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | 3,0L 20W-50/10W-40 |
| Oil filter | K & N - KN-133 |
| Brake fluid | DOT 3/4 |
| Battery | YB14L-A2 |
| Spark plugs | NGK B8ES |
| Idle speed | 1050 +/- 50 RPM |
| Chain size | 630 |
| Chain links | 96 |
| Sprockets | 15/41 (front/rear) |
| Tire pressure front | 26 PSI (1.8 Bar or 180 kPa) |
| Tire pressure rear | 29 PSI (2 Bar or 200 kPa) |
| Fork tube size | 35 mm (1.4 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
