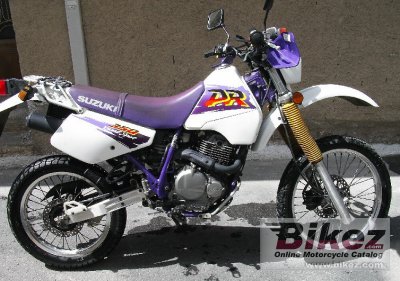

Suzuki DR 350 SE 19961996 Suzuki DR 350 SE specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Suzuki DR 350 SE |
| Year of manufacture | 1996 |
| Type | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 349.0 ccm (21.30 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 30.1 HP (22.0 kW)) @ 7600 RPM |
| Torque | 67.0 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 6200 RPM |
| Top speed | 146.0 km/h (90.7 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 79.0 x 71.2 mm (3.1 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST33 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Fuel consumption | 5.50 litres/100 km (18.2 km/l or 42.77 mpg) |
| Greenhouse gases | 127.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond, steel |
| Front suspension | Telescopic, cartridge-type, 13-way adjustable compression damping and 17-way adjustable rebound damping |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | Link-type, fully adjustable spring preload, compression and rebound damping |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-18 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 250 mm (9.8 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 130.0 kg (286.6 pounds) |
| Power/weight ratio | 0.2315 HP/kg |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1245 mm (49.0 inches) |
| Overall length | 2235 mm (88.0 inches) |
| Overall width | 885 mm (34.8 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | White |
| Starter | Electric |
| Comments | Street legal. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | Suzuki ECSTAR 10w40 |
| Oil filter | K&N KN-136 |
| Chain size | 520 |
| Chain links | 110 |
| Sprockets | 15/44 (front/rear) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
