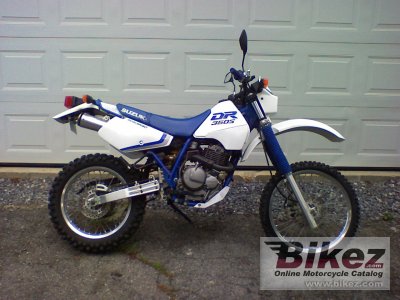

Suzuki DR 350 S 19901990 Suzuki DR 350 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Suzuki DR 350 S |
| Model year | 1990 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 349.0 ccm (21.30 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 27.0 HP (19.7 kW)) @ 7600 RPM |
| Torque | 29.0 Nm (3.0 kgf-m or 21.4 ft.lbs) |
| Top speed | 126.0 km/h (78.3 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 79.0 x 71.2 mm (3.1 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST33 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Digital CDI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Fuel consumption | 5.50 litres/100 km (18.2 km/l or 42.77 mpg) |
| Greenhouse gases | 127.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic, cartridge-type, 13-way adjustable compression damping and 17-way adjustable rebound damping |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | Link-type, fully adjustable spring preload, compression and rebound damping |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-18 |
| Front brakes | Single disc |
| Diameter | 250 mm (9.8 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 130.0 kg (286.6 pounds) |
| Weight incl. oil, gas, etc | 141.0 kg (310.9 pounds) |
| Power/weight ratio | 0.2077 HP/kg |
| Seat height | 899 mm (35.4 inches) If adjustable, lowest setting. |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 1.90 litres (2.01 US quarts) |
| Other specifications | |
| Color options | Blue/white, yellow/white |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | HiFlo HF136 |
| Brake fluid | DOT 4 |
| Spark plugs | DPR9EA9 |
| Idle speed | 1200 +/- 100 RPM |
| Chain size | 520 |
| Chain links | 102 |
| Sprockets | 15/41 (front/rear) |
| Tire pressure front | 22 PSI (1.5 Bar or 150 kPa) |
| Tire pressure rear | 22 PSI (1.5 Bar or 150 kPa) |
| Fork tube size | 43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
