General information |
|
Motorcycle name
|

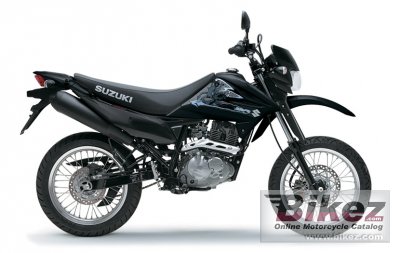

Suzuki DR125SM |
|
Model year
|
2013 |
|
Category
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
57.0 x 48.8 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic ignition (Transistorised) |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic, coil spring, oil damped |
|
Rear suspension
|
Swingarm type, coil spring, oil and gas damped |
|
Front tire
|
100/80-M17 |
|
Rear tire
|
130/70-M17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
88.0 kg (194.0 pounds) |
|
Seat height
|
836 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1135 mm (44.7 inches) |
|
Overall length
|
2040 mm (80.3 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
White/Black |
|
Starter
|
Kick |
