General information |
|
Model
|

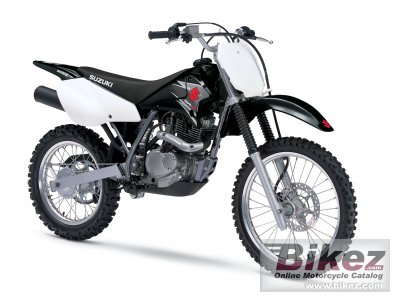

Suzuki DR-Z 125 L |
|
Year of manufacture
|
2007 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
11.8 HP (8.6 kW)) @ 9500 RPM |
|
Torque
|
10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 8500 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
57.0 x 48.8 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. MikuniT VM20SS |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, cable operated |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel, single cradle |
|
Front suspension
|
Telescopic, oil-damped |
|
Rear suspension
|
Link-type, oil-damped |
|
Front tire
|
70/70-19 |
|
Rear tire
|
90/90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
80.0 kg (176.4 pounds) |
|
Power/weight ratio
|
0.1475 HP/kg |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
1885 mm (74.2 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
6.60 litres (1.74 US gallons) |
|
Other specifications |
|
Color options
|
Yellow, Black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
10-40W |
|
Spark plugs
|
NGK, DR8EA |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
