2002 Suzuki DR-Z 125

Suzuki DR-Z 125 2002


2002 Suzuki DR-Z 125 specifications, pictures, reviews and rating

2002 Suzuki DR-Z 125

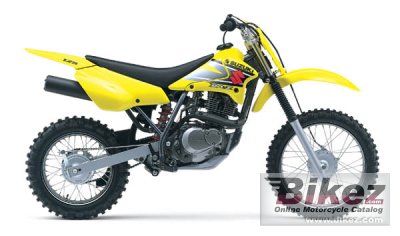

2002 Suzuki DR-Z 125. Picture by Suzuki. Published with permission.. Submit more pictures.
General information
Model Suzuki DR-Z 125
Year of manufacture 2002
Type Enduro / offroad
Rating 2.5  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Engine size 124.0 ccm (7.57 cubic inches)
Type of engine Single cylinder, four-stroke
Compression 9.5:1
Bore x stroke 57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves per cylinder 2
Fuel system Carburettor
Fuel control Single Overhead Cams (SOHC)
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 70/100-17
Rear tire 90/100-14
Front brakes Expanding brake
Rear brakes Expanding brake
Physical measures and capacities
Seat height 770 mm (30.3 inches) If adjustable, lowest setting.
Overall height 1055 mm (41.5 inches)
Overall length 1835 mm (72.2 inches)
Overall width 880 mm (34.6 inches)
Ground clearance 245 mm (9.6 inches)
Wheelbase 1245 mm (49.0 inches)
Fuel capacity 6.60 litres (1.74 US gallons)
Other specifications
