Suzuki DR-Z50 20122012 Suzuki DR-Z50 specifications, pictures, reviews and rating |

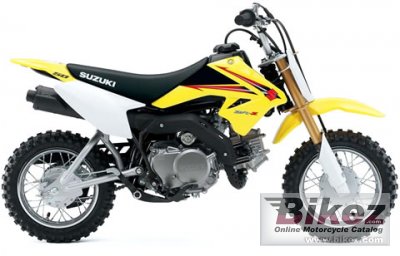

 2012 Suzuki DR-Z50. Picture credits - Suzuki. Submit more pictures. |
|
| General moped information | |
|---|---|
| Model | Suzuki DR-Z50 |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 3.9 HP (2.8 kW)) @ 9500 RPM |
| Torque | 3.4 Nm (0.3 kgf-m or 2.5 ft.lbs) @ 7000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Mikuni VM13 |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 3-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Driveline | Constant mesh bottom neutral three-stage return |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone |
| Rake (fork angle) | 25.5° |
| Trail | 36 mm (1.4 inches) |
| Front suspension | Inverted telescopic, coil spring |
| Rear suspension | Swingarm type, coil spring, oil damped |
| Front tire | 2.50-10 |
| Rear tire | 2.50-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 54.0 kg (119.0 pounds) |
| Seat height | 560 mm (22.0 inches) If adjustable, lowest setting. |
| Overall length | 1320 mm (52.0 inches) |
| Overall width | 580 mm (22.8 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 935 mm (36.8 inches) |
| Fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Yellow/black |
| Starter | Electric & kick |
| Comments | Intended for children under 40 kg. Sold in Japan. |
