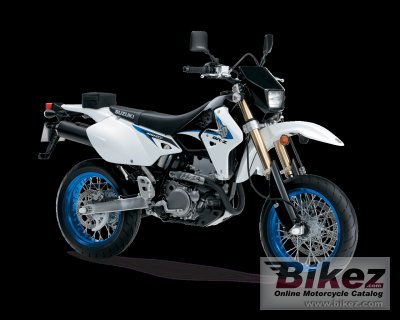

2013 Suzuki DR-Z400SM

Suzuki DR-Z400SM 2013


2013 Suzuki DR-Z400SM specifications, pictures, reviews and rating

Suzuki's profilation of this bike
They key difference from the DR-Z400SM and the DR-Z400S is the inverted forks. Inverted front forks contribute to less unsprung weight and improved overall handling.

General information
Model name Suzuki DR-Z400SM
Model year 2013
Category Super motard
Price as newUS$ 6999. MSRP depends on country, taxes, accessories, etc.
Rating 3.2  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 398.0 ccm (24.29 cubic inches)
Engine type Single cylinder, four-stroke
Compression 11.3:1
Bore x stroke 90.0 x 62.6 mm (3.5 x 2.5 inches)
Fuel system Carburettor. MIKUNI BSR36, single
Fuel control Double Overhead Cams/Twin Cam (DOHC)
Ignition Electronic ignition
Lubrication system Dry sump
Cooling system Liquid
Gearbox 5-speed
Transmission type Chain (final drive)
Driveline RK520KZO, 110 links
Chassis, suspension, brakes and wheels
Frame type Chrome-moly steel frame
Front suspension Inverted telescopic, coil spring, oil damped
Rear suspension Link type, coil spring, oil damped
Front tire 120/70-R17
Rear tire 140/70-R17
Front brakes Single disc
Rear brakes Single disc
Physical measures and capacities
Weight incl. oil, gas, etc 146.0 kg (321.9 pounds)
Seat height 890 mm (35.0 inches) If adjustable, lowest setting.
Overall length 2225 mm (87.6 inches)
Overall width 855 mm (33.7 inches)
Ground clearance 260 mm (10.2 inches)
Wheelbase 1460 mm (57.5 inches)
Fuel capacity 9.84 litres (2.60 US gallons)
Other specifications
Color options White/Black
Starter Electric
Factory warranty 12 month unlimited mileage limited warranty.
