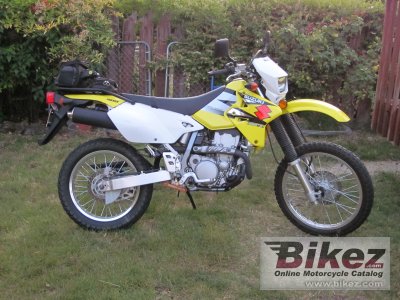

Suzuki DR-Z400S 20042004 Suzuki DR-Z400S specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Dual Sport |
| General information | |
|---|---|
| Model name | Suzuki DR-Z400S |
| Year of manufacture | 2004 |
| Type | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 398.0 ccm (24.29 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.3:1 |
| Bore x stroke | 90.0 x 62.6 mm (3.5 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic CDI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 27.2° |
| Trail | 107 mm (4.2 inches) |
| Front suspension | Telescopic, coil spring, oil damped |
| Front tire | 80/100-21 |
| Rear tire | 90/120-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 132.0 kg (291.0 pounds) |
| Seat height | 935 mm (36.8 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2310 mm (90.9 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Reserve fuel capacity | 2.30 litres (0.61 US gallons) |
| Other specifications | |
| Color options | blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
