General information |
|
Model
|

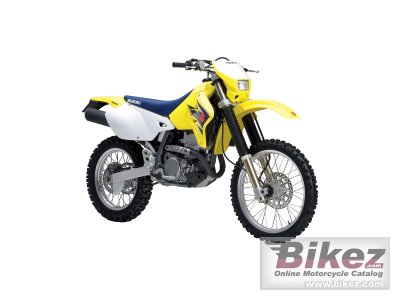

Suzuki DR-Z400E |
|
Year model
|
2011 |
|
Type
|
Enduro / offroad |
| Price as new | US$ 5199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
398.0 ccm (24.29 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28º included valve angle and shim-under-bucket valve adjustment system. |
|
Compression
|
12.2:1 |
|
Bore x stroke
|
90.0 x 62.6 mm (3.5 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin™ FCR39. 6-liter airbox, |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital/DC-CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
#520 chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrome-moly steel |
|
Front suspension
|
Telescopic, cartridge-type, oil-damped, adjustable preload, 14-way compression damping and 18-way rebound damping |
|
Rear suspension
|
Link-type, fully-adjustable spring preload, adjustable high/low compression dampimg and adjustable rebound damping |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/100-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
123.5 kg (272.3 pounds) |
|
Seat height
|
945 mm (37.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2235 mm (88.0 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
325 mm (12.8 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Color options
|
Yellow |
|
Starter
|
Electric |
|
Light
|
55-watt headlight. LED-type taillight |
|
Factory warranty
|
6 month unlimited mileage limited warranty |
| Update specs | Report missing specs or required updates. |
|
