General information |
|
Model name
|

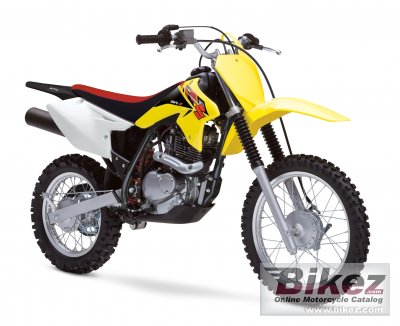

Suzuki DR-Z125 |
|
Year
|
2013 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 3099. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
56.9 x 48.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor. MIKUNI VM20SS |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic ignition |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
DID 428HG, 122 links |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic, coil spring, oil damped |
|
Rear suspension
|
Link type, coil spring, oil damped |
|
Front tire
|
70/100-M,17 |
|
Rear tire
|
90/100-M,14 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
88.0 kg (194.0 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1085 mm (42.7 inches) |
|
Overall length
|
1835 mm (72.2 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
4.16 litres (1.10 US gallons) |
|
Other specifications |
|
Color options
|
Champion Yellow/Solid Black |
|
Starter
|
Kick |
|
Factory warranty
|
12 month unlimited mileage limited warranty. |
