Suzuki Burgman 650AZ 20092009 Suzuki Burgman 650AZ specifications, pictures, reviews and rating |

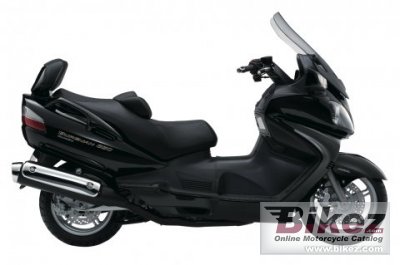

 2009 Suzuki Burgman 650AZ. Picture credits - Suzuki. Submit more pictures. |
|
| Suzuki's profilation of this bike |
| The Burgman 650AZ offers all the benefits of the Burgman 650 including a liquid-cooled 638cc engine, with vibration-reducing dual counter balancer shafts. |
| General information | |
|---|---|
| Model name | Suzuki Burgman 650AZ |
| Year model | 2009 |
| Type | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 638.0 ccm (38.93 cubic inches) |
| Type of engine | Twin, four-stroke |
| Compression | 11.2:1 |
| Bore x stroke | 75.5 x 71.3 mm (3.0 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (Transistorised) |
| Lubrication system | TBC |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic, coil spring, oil damped |
| Rear suspension | Swingarm type, coil spring, oil damped |
| Front tire | 120/70-R15 |
| Rear tire | 160/60-R14 |
| Front brakes | Double disc. ABS |
| Rear brakes | Single disc. ABS |
| Physical measures and capacities | |
| Dry weight | 243.0 kg (535.7 pounds) |
| Seat height | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height | 1435 mm (56.5 inches) |
| Overall length | 2260 mm (89.0 inches) |
| Overall width | 810 mm (31.9 inches) |
| Wheelbase | 1595 mm (62.8 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Suzuki Burgman 650AZ discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2009 Suzuki Burgman 650AZ discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Suzuki bike | |
Racing track capabilities for the 2009 Suzuki Burgman 650AZ:  (46.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
