General information |
|
Model name
|

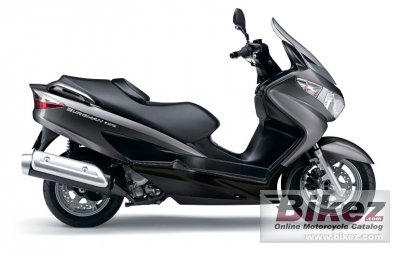

Suzuki Burgman 125 |
|
Year model
|
2013 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
57.0 x 48.8 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry shoe, automatic, centrifugal type |
|
Driveline
|
V-belt |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic, coil sprung, oil damped |
|
Rear suspension
|
Swingarm type, coilspring, oildamped |
|
Front tire
|
110/90-M13 |
|
Rear tire
|
130/70-P,12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
148.0 kg (326.3 pounds) |
|
Weight incl. oil, gas, etc
|
159.0 kg (350.5 pounds) |
|
Seat height
|
735 mm (28.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1240 mm (48.8 inches) |
|
Overall length
|
2055 mm (80.9 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Wheelbase
|
1465 mm (57.7 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Grey, Cola |
|
Starter
|
Electric |
|
Comments
|
Windscreen |
