General information |
|
Model
|

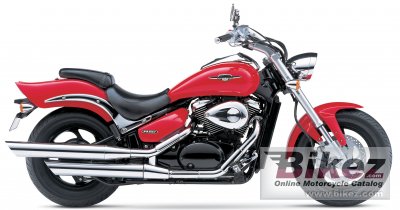

Suzuki Boulevard M50 |
|
Year model
|
2005 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 6749. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
819.4 ccm (50.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
65.0 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 5000 RPM |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
83.0 x 74.4 mm (3.3 x 2.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Soft-tail-style frame creates a continuous flowing line from the headlight, through the fuel tank, seat and rear fender |
|
Front suspension
|
Inverted, telescopic, coil spring, oil damped |
|
Rear suspension
|
Link-type, oil damped, 7-way adjustable spring preload |
|
Front tire
|
130/90-16 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
245.0 kg (540.1 pounds) |
|
Weight incl. oil, gas, etc
|
269.0 kg (593.0 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2370 mm (93.3 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1655 mm (65.2 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Oil capacity
|
3.40 litres (3.59 US quarts) |
|
Other specifications |
|
Color options
|
Blue, Red |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
K & N - KN-138 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Battery
|
YTX12-BS |
|
Spark plugs
|
NGK DPR7EA-9, NGK DPR7EIX-9 |
|
Idle speed
|
1100 +/- 100 RPM |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
