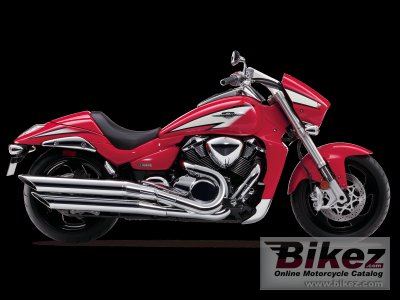

Suzuki Boulevard M109R Limited Edition 20132013 Suzuki Boulevard M109R Limited Edition specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Its unrivaled capabilities are born from Suzuki´s championship-winning race heritage. Each bike´s magnificent performance begins with a 1783cc, 8-valve DOHC, 54-degree, liquid-cooled, V-Twin engine. The M109R’s engine is tuned to produce massive torque all the way from idle to redline, which translates into acceleration that you have to feel to believe. |
| General information | |
|---|---|
| Model name | Suzuki Boulevard M109R Limited Edition |
| Year | 2013 |
| Category | Custom / cruiser |
| Price as new | US$ 14799. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1783.0 ccm (108.80 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 54-degree V-Twin |
| Compression | 10.5:1 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Constant mesh |
| Exhaust system | 2-into-1-into-2 stainless steel chromed exhaust system |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile double cradle steel frame |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Rear suspension | Link type, oil damped, coil spring |
| Front tire | 130/70-R18 |
| Rear tire | 240/40-R18 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1710 mm (67.3 inches) |
| Fuel capacity | 18.55 litres (4.90 US gallons) |
| Other specifications | |
| Color options | Pearl Mira Red |
| Starter | Electric |
| Factory warranty | 1 year unlimited mileage limited warranty. |
| Update specs | Report missing specs or required updates. |
