Suzuki Boulevard M109R Limited Edition 20092009 Suzuki Boulevard M109R Limited Edition specifications, pictures, reviews and rating |

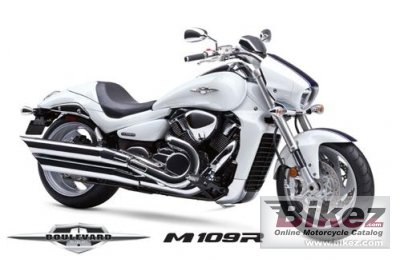

2009 Suzuki Boulevard M109R Limited Edition. Image credits - Suzuki.
| Suzuki's profilation of this bike |
| Aggressive new special edition M109R with a sporty racing stripe, checkerboard background gauge package, clear taillight lens with red LEDs and a stylish textured seat. Buff polished and clear coated handle switches, brake master cylinder for customized look. New speedometer face design has polished metal finish for sporty appearance |
| General information | |
|---|---|
| Model name | Suzuki Boulevard M109R Limited Edition |
| Model year | 2009 |
| Category | Custom / cruiser |
| Price as new | US$ 13399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1783.0 ccm (108.80 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Electronic ignition (Transistorized) |
| Lubrication system | Semi-Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile double cradle steel |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Rear suspension | Link type, coil spring, oil damped |
| Front tire | 130/70-R18 |
| Rear tire | 240/40-R18 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Overall height | 1185 mm (46.7 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1710 mm (67.3 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | White/Blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Suzuki Boulevard M109R Limited Edition discussion group or the general Suzuki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Suzuki Boulevard M109R Limited Edition discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Suzuki bike | |
Offroad capabilities for the 2009 Suzuki Boulevard M109R Limited Edition:  (32.6 out of 100)Click here for complete rating. |
|
