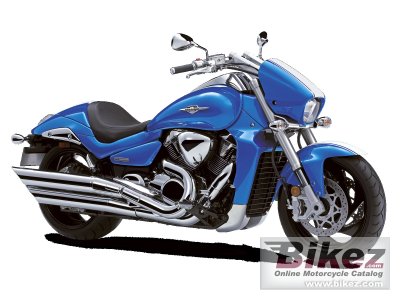

Suzuki Boulevard M109R Limited 20122012 Suzuki Boulevard M109R Limited specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The M109R Limited Edition features a sporty racing stripe, custom gauges and tailight, and a uniquely styled seat. For 2012 the M109R Limited is availabe in new Metallic Triton Blue/Glass Splash White and Glass Sparkle Black/Candy Max Orange. |
| General information | |
|---|---|
| Motorcycle name | Suzuki Boulevard M109R Limited |
| Model year | 2012 |
| Category | Custom / cruiser |
| Price as new | US$ 14799. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1783.0 ccm (108.80 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 54° V-twin. Forged aluminum-alloy pistons. |
| Compression | 10.5:1 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Suzuki Dual Throttle Valve system (SDTV) with 52mm throttle bodies |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Transistorized |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 5-speed constant mesh |
| Exhaust system | 2-into1-into2 stainless steel chromed |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-tensile double cradle steel |
| Front suspension | Telescopic, coil spring, oil damped |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Link type, coil spring, oil damped |
| Front tire | 130/70-18 |
| Rear tire | 240/40-18 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Overall length | 2450 mm (96.5 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1710 mm (67.3 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Blue/white, black/orange |
| Factory warranty | 12 month unlimited mileage limited |
| Comments | Limited Edition model. |
