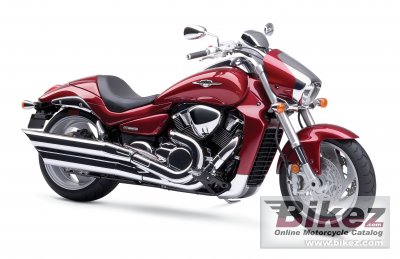

Suzuki Boulevard M109R 20072007 Suzuki Boulevard M109R specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| The Boulevard M109R´s exhilarating performance begins with its all-new 109-cubic-inch, fuel injected V-twin engine. It´s tuned to produce massive torque all the way from idle to redline, which translates into acceleration that you have to feel to believe - and makes this the most powerful cruiser Suzuki has ever produced. |
| General information | |
|---|---|
| Model name | Suzuki Boulevard M109R |
| Year of manufacture | 2007 |
| Type | Custom / cruiser |
| Price as new | US$ 12599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1783.0 ccm (108.80 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 123.4 HP (90.1 kW)) @ 5200 RPM |
| Torque | 160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3200 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 112.0 x 90.5 mm (4.4 x 3.6 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital/transistorized |
| Lubrication system | Semi-Dry Sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi-plate type |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Inverted telescopic, coil spring, oil damped |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Link type, coil spring, oil damped, 7 way adjustable spring pre-load |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 130/70-R18 |
| Rear tire | 240/40-R18 |
| Front brakes | Double disc. Two-piston calipers. |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 274 mm (10.8 inches) |
| Physical measures and capacities | |
| Dry weight | 319.0 kg (703.3 pounds) |
| Weight incl. oil, gas, etc | 347.0 kg (765.0 pounds) |
| Power/weight ratio | 0.3867 HP/kg |
| Seat height | 705 mm (27.8 inches) If adjustable, lowest setting. |
| Overall height | 1185 mm (46.7 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 875 mm (34.4 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1710 mm (67.3 inches) |
| Fuel capacity | 19.50 litres (5.15 US gallons) |
| Other specifications | |
| Color options | Black, White, Red |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
