Suzuki's profilation of this bike |
Unique new two-stage cam drive system creates a compact cylinder head design and reduces overall engine height and creates a lower center of gravity |
General information |
Motorcycle name
|

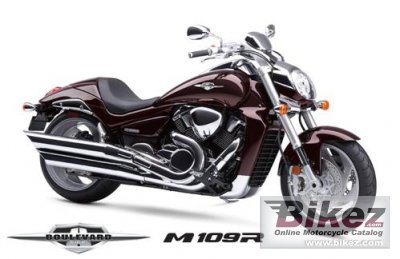

Suzuki Boulevard M109R2 |
Year model
|
2009 |
Type
|
Custom / cruiser |
Price as new | US$ 13099. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1783.0 ccm (108.80 cubic inches) |
Type of engine
|
V2, four-stroke |
Bore x stroke
|
112.0 x 90.5 mm (4.4 x 3.6 inches) |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Electronic ignition |
Lubrication system
|
Semi-Dry sump |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
High-tensile double cradle steel |
Front suspension
|
Inverted telescopic, coil spring, oil damped |
Rear suspension
|
Link type, coil spring, oil damped |
Front tire
|
130/70-R18 |
Rear tire
|
240/40-R18 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
347.0 kg (765.0 pounds) |
Seat height
|
705 mm (27.8 inches) If adjustable, lowest setting. |
Overall height
|
1185 mm (46.7 inches) |
Overall length
|
2450 mm (96.5 inches) |
Overall width
|
875 mm (34.4 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1710 mm (67.3 inches) |
Other specifications |
Color options
|
Black, Red |
Starter
|
Electric |
