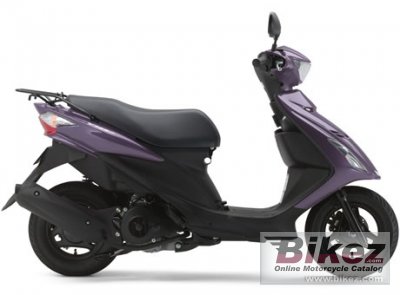

Suzuki Address V125S 20122012 Suzuki Address V125S specifications, pictures, reviews and rating |
| Suzuki's profilation of this bike |
| Low cost, compact, lightweight. |
| General information | |
|---|---|
| Motorcycle name | Suzuki Address V125S |
| Year model | 2012 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.5 ccm (7.60 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 9.8 HP (7.1 kW)) @ 7500 RPM |
| Torque | 10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6000 RPM |
| Top speed | 104.6 km/h (65.0 mph) |
| Compression | 9.6:1 |
| Bore x stroke | 53.5 x 55.2 mm (2.1 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | By pump |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Fuel consumption | 1.92 litres/100 km (52.1 km/l or 122.51 mpg) |
| Greenhouse gases | 44.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Underbone |
| Rake (fork angle) | 26.0° |
| Trail | 82 mm (3.2 inches) |
| Front suspension | Telescopic |
| Rear suspension | Swing-arm. Twin shocks. |
| Front tire | 90/90-10 |
| Rear tire | 100/90-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Seat | Dual. Seat heater unit under the seat. |
| Physical measures and capacities | |
| Dry weight | 103.0 kg (227.1 pounds) |
| Power/weight ratio | 0.0950 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 1780 mm (70.1 inches) |
| Overall width | 650 mm (25.6 inches) |
| Ground clearance | 160 mm (6.3 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 6.30 litres (1.66 US gallons) |
| Oil capacity | 1.10 litres (1.16 US quarts) |
| Other specifications | |
| Color options | Black, silver, gray |
| Starter | Electric & kick |
| Electrical | 12V 5Ah battery |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Spark plugs | NGK CR6HSA, - |
| Idle speed | 1500 +/- 100 RPM |
| Chain links | 100 |
| Sprockets | 14/34 (front/rear) |
| Tire pressure front | 25 PSI (1.8 Bar or 175 kPa) |
| Tire pressure rear | 29 PSI (2 Bar or 200 kPa) |
| Fork tube size | 26 mm (1.0 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
