General information |
|
Model name
|

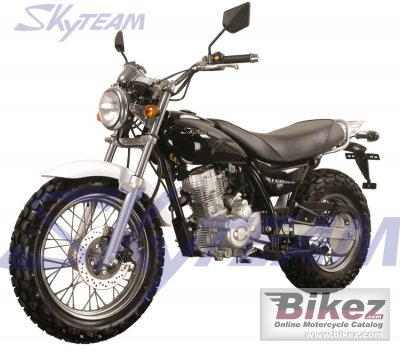

Skyteam V-Raptor 125 |
|
Year model
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Torque
|
8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 7500 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. keihin PTG 07 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure and splash lubricarion |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double tube, steel |
|
Front suspension
|
Spring and oil |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Monoshock |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/80-18 |
|
Rear tire
|
180/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
123.0 kg (271.2 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
2092 mm (82.4 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
245 mm (9.6 inches) |
|
Wheelbase
|
1225 mm (48.2 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Oil capacity
|
0.80 litres (0.85 US quarts) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Made in China. |
