General information |
|
Motorcycle name
|

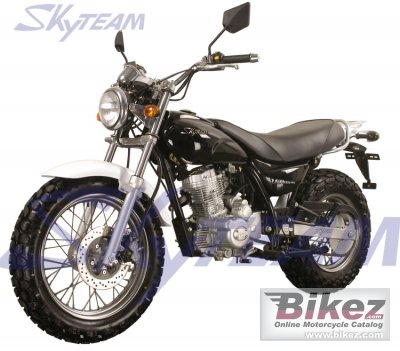

Skyteam ST125-2 V-raptor |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
9.1 HP (6.6 kW)) @ 8500 RPM |
|
Torque
|
8.2 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 7500 RPM |
|
Top speed
|
90.0 km/h (55.9 mph) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. KEIHIN PTG 07 |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Wet, multiple disc |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
STEEL, DOUBLE TUBE |
|
Front tire
|
120/80-18 |
|
Rear tire
|
180/80-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
175.0 kg (385.8 pounds) |
|
Power/weight ratio
|
0.0521 HP/kg |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Overall width
|
845 mm (33.3 inches) |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1380 mm (54.3 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Other specifications |
|
Color options
|
YELLOW/GREEN/BLACK/CHOCOLATE |
|
Starter
|
Electric & kick |
|
Comments
|
TRACTOR TIRE
COMFORTABLE SEAT |
