| General moped information |
|---|

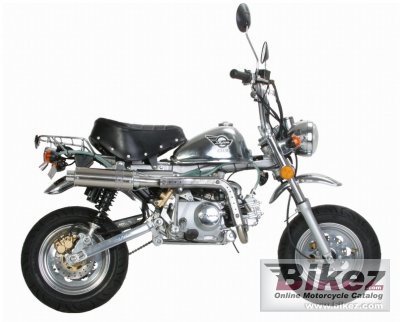

| Model: | Skyteam Le Mans Club 50 |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.0 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 2.5 HP (1.9 kW)) @ 7500 RPM |
| Top speed: | 45.0 km/h (28.0 mph) |
| Compression: | 8.8:1 |
| Bore x stroke: | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Lubrication system: | Pressure and splash lubricarion |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiple disc |
| Fuel consumption: | 1.60 litres/100 km (62.5 km/l or 147.01 mpg) |
| Greenhouse gases: | 37.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic forks |
| Rear suspension: | Spring and Oil / Double Shock |
| Rear tyre: | -.10 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 64.0 kg (141.1 pounds) |
| Power/weight ratio: | 0.0397 HP/kg |
| Seat height: | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height: | 905 mm (35.6 inches) |
| Overall length: | 1515 mm (59.6 inches) |
| Overall width: | 720 mm (28.3 inches) |
| Wheelbase: | 1065 mm (41.9 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Color options: | Red, black, silver, semi-matte black |
| Starter: | Electric & kick |
| Comments: | Chinese bike. |
