General information |
|
Model name
|

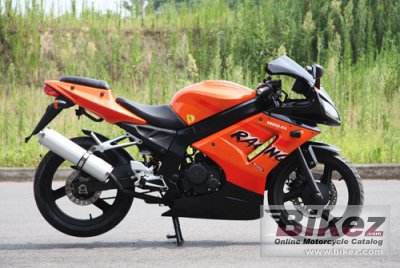

Shineray XY-250 5A |
|
Year
|
2011 |
|
Category
|
Sport |
|
Rating
|
2.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
232.6 ccm (14.19 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
16.1 HP (11.7 kW)) @ 7500 RPM |
|
Torque
|
18.0 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 6000 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
69.0 x 62.2 mm (2.7 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressed/Splash |
|
Cooling system
|
Oil & air |
|
Clutch
|
Manual |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Cartridge fork with spring-preload, rebound and compression damping adjustability,128mm travel |
|
Rear suspension
|
Unit Pro-Link single shock with spring preload, rebound and compression damping adjustability,130mm travel |
|
Front tire
|
110/70-17 |
|
Rear tire
|
140/60-17 |
|
Front brakes
|
Single disc. Radial-mounted two-piston calipers |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
150.0 kg (330.7 pounds) |
|
Power/weight ratio
|
0.1073 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1020 mm (40.2 inches) |
|
Overall length
|
2010 mm (79.1 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
