General information |
Motorcycle name
|

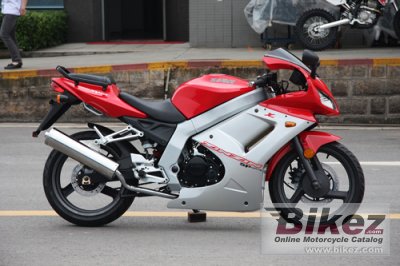

Shineray XY-125 11A |
Year of manufacture
|
2011 |
Type
|
Sport |
Rating
|
2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.0 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
10.7 HP (7.8 kW)) @ 8500 RPM |
Torque
|
9.5 Nm (1.0 kgf-m or 7.0 ft.lbs) @ 7000 RPM |
Top speed
|
90.0 km/h (55.9 mph) |
Compression
|
9.2:1 |
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
Fuel system
|
Carburettor |
Ignition
|
C.D.I |
Lubrication system
|
Pressure splash |
Cooling system
|
Air |
Gearbox
|
5-speed |
Clutch
|
Wet multiple plate |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel tube and armor plate complex, double lower tube cradel type |
Front suspension
|
Hydraulic pressure and spring complex |
Rear suspension
|
Hydraulic pressure and spring complex, one shock absorber |
Front tire
|
110/70-17 |
Rear tire
|
140/60-17 |
Front brakes
|
Single disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
150.0 kg (330.7 pounds) |
Power/weight ratio
|
0.0715 HP/kg |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall length
|
2010 mm (79.1 inches) |
Ground clearance
|
150 mm (5.9 inches) |
Wheelbase
|
1360 mm (53.5 inches) |
Fuel capacity
|
16.00 litres (4.23 US gallons) |
Other specifications |
Color options
|
Black |
Starter
|
Electric |
