General information |
|
Model name
|

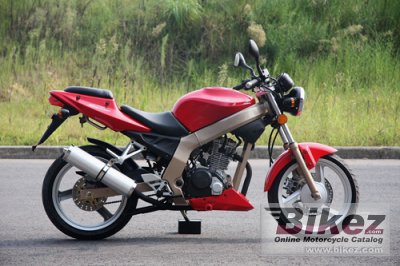

Shineray XY-125 11 |
|
Year model
|
2011 |
|
Type
|
Naked bike |
|
Rating
|
3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
10.7 HP (7.8 kW)) @ 8500 RPM |
|
Torque
|
9.5 Nm (1.0 kgf-m or 7.0 ft.lbs) @ 7000 RPM |
|
Top speed
|
90.0 km/h (55.9 mph) |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I |
|
Lubrication system
|
Pressure splash |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiple plate |
|
Exhaust system
|
Impedance canister type muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube and armor plate complex, double lower tube cradel type |
|
Front suspension
|
Hydraulic pressure and spring complex |
|
Rear suspension
|
Hydraulic pressure and spring complex, one shock absorber |
|
Front tire
|
110/70-17 |
|
Rear tire
|
140/60-17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
150.0 kg (330.7 pounds) |
|
Power/weight ratio
|
0.0715 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2010 mm (79.1 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Electrical
|
12V 10Ah battery |
|
Comments
|
Chinese made bike. |
