| Sherco's profilation of this bike |
| The Urban has the genes from that prestigious family which gives the riders of these bikes a sense of security that is unparalleled in the industry. It is designed and built so that its owner can safely push it to its limits and enjoy it to the fullest. |
| General moped information |
|---|

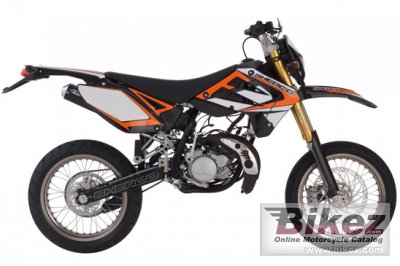

| Model: | Sherco Urban SU 50 |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.7 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Nikasil coated cylinder with automatic oil injection |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Dellortho |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Electronic 12v 85 w |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multidisc in oil bath |
| Driveline: | Primary gear drive, chain secondary drive. |
| Exhaust system: | Steel exhaust system with aluminum silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chrome-molybdenum tubing main frame with a removable sub-frame |
| Front suspension: | Gold Paioli Upside down 37mm dia hydraulic telescopic fork |
| Rear suspension: | Olle single shock absorber, adjustable spring preload |
| Front tyre: | 2.50-17 |
| Rear tyre: | 3.50-17 |
| Front brakes: | Single disc. Hydraulically activated AJP, floating disc |
| Diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Diameter: | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 83.0 kg (183.0 pounds) |
| Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Ground clearance: | 260 mm (10.2 inches) |
| Wheelbase: | 1360 mm (53.5 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Color options: | Blue, green, orange, red |
| Starter: | Kick |
| Comments: | Made in France. Spanish brand. |
