| Sherco's profilation of this bike |
| Sherco continues to be faithful to its ideal of progression and constant evolution. The release of the new 2012 Trials models is the culmination of a cycle of innovation and renovation that was started 3 years ago with the introduction of a new frame and then last year the new engine and now numerous innovations and technical updates that increase the performance and overall handling of the bike regardless of how it is used. |
|
General information |
|
Motorcycle name
|

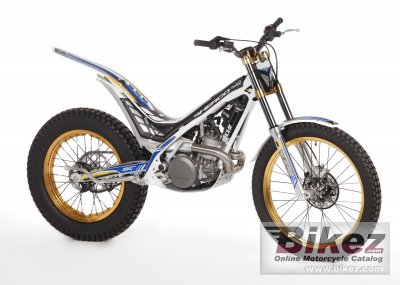

Sherco ST 4 |
|
Year model
|
2012 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
317.0 ccm (19.34 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Nikasil coated cylinder |
|
Bore x stroke
|
82.0 x 60.0 mm (3.2 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin Ø28mm with SPS (Sherco Prompt System) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Leonelli electronic digital |
|
Lubrication system
|
Wet sump pressure lubrication |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisc |
|
Driveline
|
5 speed sequential gearbox with security selector system to prevent false shifts. |
|
Exhaust system
|
Steel header pipe with an integrated aluminum muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular section Chrome-moly |
|
Front suspension
|
Tech Ø 39 mm hydraulic telescopic fork |
|
Front wheel travel
|
165 mm (6.5 inches) |
|
Rear suspension
|
Progressive link system with single Olle adjustable shock absorber, |
|
Rear wheel travel
|
175 mm (6.9 inches) |
|
Front tire
|
2.50-21 |
|
Rear tire
|
2.75-18 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
145 mm (5.7 inches) |
|
Wheels
|
Gold anodized aluminum rim and aluminum hub, steel spokes with Michelin tube-type tire |
|
Physical measures and capacities |
|
Dry weight
|
73.0 kg (160.9 pounds) |
|
Seat height
|
645 mm (25.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1322 mm (52.0 inches) |
|
Fuel capacity
|
2.90 litres (0.77 US gallons) |
|
Other specifications |
|
Color options
|
Black/blue |
|
Starter
|
Kick |
|
Comments
|
Made in Spain. |
