| Sherco's profilation of this bike |
| The new 2011 Sherco has a completely new engine which was redesigned from the engine cases out. The cooling system lines are integrated into the new cases, thereby eliminating the external lines, this leads to increased reliability and reduced maintenance. |
|
General information |
|
Model name
|

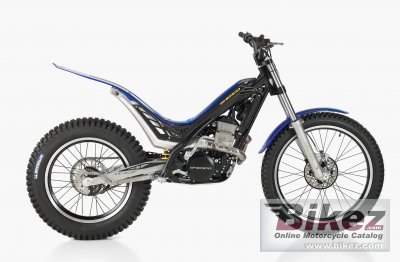

Sherco ST 3.2 F |
|
Year
|
2011 |
|
Category
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
317.0 ccm (19.34 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Nikasil coated cylinder |
|
Bore x stroke
|
82.0 x 60.0 mm (3.2 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 28mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Dual Map Leonelli progressive electronic ignition with a balanced magnetic flywheel |
|
Lubrication system
|
Wet sump pressure lubrication |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisc |
|
Driveline
|
5 speed sequential gearbox with security selector system to prevent false shifts. |
|
Exhaust system
|
Steel header pipe with an integrated aluminum muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular section Chrome-moly |
|
Front suspension
|
Ceriani 38 mm. dia hydraulic telescope fork, |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
Progressive link system with single Olle adjustable shock absorber, |
|
Rear wheel travel
|
175 mm (6.9 inches) |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
145 mm (5.7 inches) |
|
Wheels
|
Gold anodized aluminum rim and aluminum hub, steel spokes with Michelin tube-type tire |
|
Physical measures and capacities |
|
Dry weight
|
70.0 kg (154.3 pounds) |
|
Weight incl. oil, gas, etc
|
72.5 kg (159.8 pounds) |
|
Seat height
|
645 mm (25.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1322 mm (52.0 inches) |
|
Fuel capacity
|
2.90 litres (0.77 US gallons) |
|
Other specifications |
|
Color options
|
Black/blue |
|
Starter
|
Kick |
