| Sherco's profilation of this bike |
| The new tubular steel frame embraces two of the most important developments of the new Sherco. The positions of the fuel tank and the air filter have been exchanged. With the relocation of these two major components you get a new weight distribution closer to the nucleus. |
|
General information |
|
Model name
|

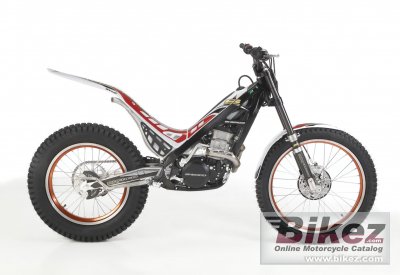

Sherco ST 3.2 F |
|
Year of manufacture
|
2010 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
317.0 ccm (19.34 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
82.0 x 60.0 mm (3.2 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 28mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Dual Map Leonelli progressive electronic ignition with a balanced magnetic flywheel |
|
Lubrication system
|
Wet sump pressure lubrication |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multidisc |
|
Exhaust system
|
Steel header pipe with an integrated aluminum muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular section Chrome-moly |
|
Front suspension
|
Ceriani 38 mm. dia hydraulic telescope fork, |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
Progressive link system with single Olle adjustable shock absorber, |
|
Rear wheel travel
|
175 mm (6.9 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
145 mm (5.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
70.0 kg (154.3 pounds) |
|
Seat height
|
645 mm (25.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1322 mm (52.0 inches) |
|
Fuel capacity
|
2.90 litres (0.77 US gallons) |
|
Other specifications |
|
Color options
|
Black/blue |
|
Starter
|
Kick |
