| Sherco's profilation of this bike |
| The motorcycle is more mature, better finished and more effective.
The changes and updates are the fruit of an aggressive racing campaign conducted by our racing department and our official factory riders. |
|
General information |
|
Model name
|

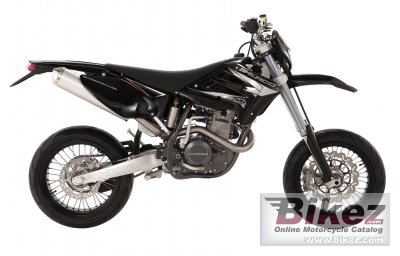

Sherco SM 5.1i-F Black Panther |
|
Year
|
2011 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
510.4 ccm (31.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection/digital engine management by Magneti Marelli |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Emission details
|
Euro 3. |
|
Exhaust system
|
Stainless steel pipe with aluminium silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Simple Chrome-Molybdenum and aluminium double cradle design |
|
Front suspension
|
Paioli telescopic fork, Ø46 mm tubes rebound and compression adjustable |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
Sachs progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
3.50-17 |
|
Rear tire
|
5.00-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
365 mm (14.4 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V 7Ah battery |
