| Sherco's profilation of this bike |
| A notable aspect of the new Sherco’s is that the original equipment components are of extremely high quality, similar to what is usually offered in the after market. This is usually not the case with most other brands, this choice of factory installed components guarantees the end user a more efficient and reliable machine from day one. |
|
General information |
|
Model name
|

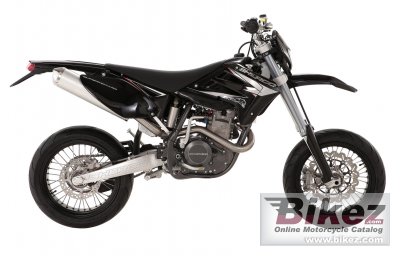

Sherco SM 5.1i-F Black Panther |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magneti Marelli |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
Euro 3. Stainless steel pipe with aluminium silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrome-Molybdenum and aluminium |
|
Front suspension
|
Paioli telescopic fork, Ø46 mm tubes rebound and compression adjustable |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
Sachs progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
3.50-17 |
|
Rear tire
|
5.00-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
365 mm (14.4 inches) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
