| Sherco's profilation of this bike |
| A motorcycle with a stronger frame, higher quality components, totally new appearance, improved Moteurmanagement and the ability to choose Allumage operating curves. Another notable aspect of the new Sherco’s is that the original equipment components are of extremely high quality, similar to what is usually offered in the after market. |
|
General information |
|
Model name
|

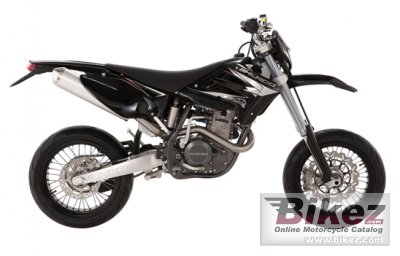

Sherco SM 510i Black Panther |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
510.4 ccm (31.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Sherco engine |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Magnetti Marelli digital |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic, multidisc in oil bath |
|
Emission details
|
Euro III |
|
Exhaust system
|
Stainless steel header pipe and muffler with catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Simple Chrome-Molybdenum and aluminium double cradle design |
|
Front suspension
|
Paioli telescopic fork, Ø46 mm tubes rebound and compression adjustable |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
Sachs progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
3.50-17 |
|
Rear tire
|
5.00-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Aluminum rim, steel spokes and Michelin Pilot Power tubeless type |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Weight incl. oil, gas, etc
|
118.0 kg (260.1 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
360 mm (14.2 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Black/grey |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V 7Ah battry. Ducati Energia alternator 180 W. |
