| Sherco's profilation of this bike |
| Several new components and a totally new look are the main characteristics of the new 4.5i Supermotard models. |
|
General information |
|
Model
|

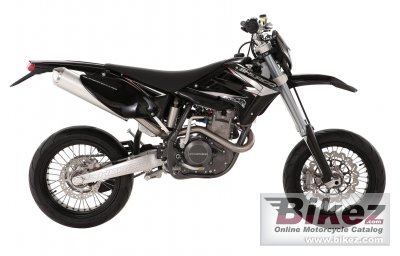

Sherco SM 4.5i-F Black Panther |
|
Year model
|
2011 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
448.6 ccm (27.37 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Sherco proprietary engine technology |
|
Bore x stroke
|
94.5 x 64.0 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Injection. Electronic fuel injection/digital engine management: Magneti Marelli |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic, multidisc in oil bath |
|
Emission details
|
Euro 3. |
|
Exhaust system
|
Stainless steel header pipe and muffler with catalytic converter. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Simple Chrome-Molybdenum and aluminium double cradle design |
|
Front suspension
|
Paioli telescopic fork, Ø46 mm tubes rebound and compression adjustable |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
Sachs progressive, multiadjustable rear shock utilizing a linkage and rod system |
|
Rear wheel travel
|
270 mm (10.6 inches) |
|
Front tire
|
3.50-17 |
|
Rear tire
|
5.00-17 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Excel aluminum rims, steel spokes and Michelin Pilot Power tubeless type. |
|
Physical measures and capacities |
|
Dry weight
|
109.0 kg (240.3 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
365 mm (14.4 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
