| Sherco's profilation of this bike |
| The SM Black Panther 125 4T was the first bike to come out of the Sherco assembly plants equipped with a four stroke Moteur. This versatile model comes in two versions:Black Panther, aimed at road use, and Enduro, equipped with mixed-use dirt/road tires and wheels. |
|
General information |
|
Motorcycle name
|

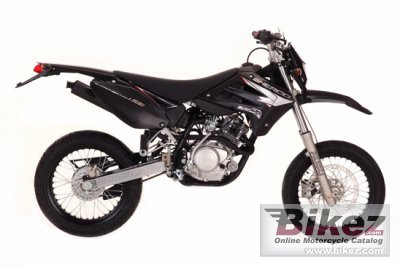

Sherco SM 125 Black Panther |
|
Year model
|
2012 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
123.7 ccm (7.55 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Yamaha-Minarelli engine. Nikasil coated cylinder treatment. |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni DM 20 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Nikasil coated cylinder treatment |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc in oil bath |
|
Driveline
|
5 speed sequential gearbox with security selector system to prevent no-gear insertion. Gears in primary drive, secondary drive with chain |
|
Emission details
|
Euro 3. |
|
Exhaust system
|
Inox steel. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Built from Chrome-molybdenum forming a single structure |
|
Front suspension
|
Hydraulic telescopic fork Paioli |
|
Rear suspension
|
Olle single shock absorber, adjustable in spring preload |
|
Front tire
|
1.60-21 |
|
Rear tire
|
2.15-18 |
|
Front brakes
|
Single disc. AJP, hydraulic |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. AJP, hHydraulic |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
99.0 kg (218.3 pounds) |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
260 mm (10.2 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
